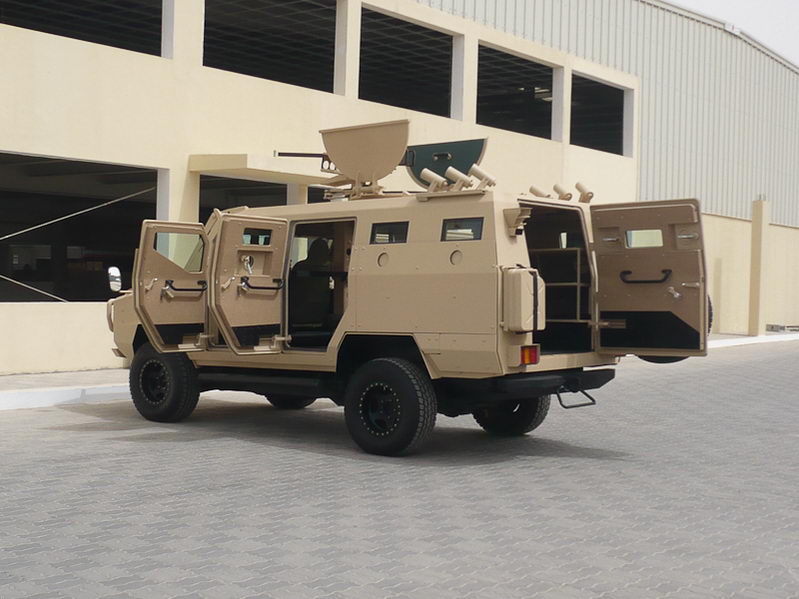

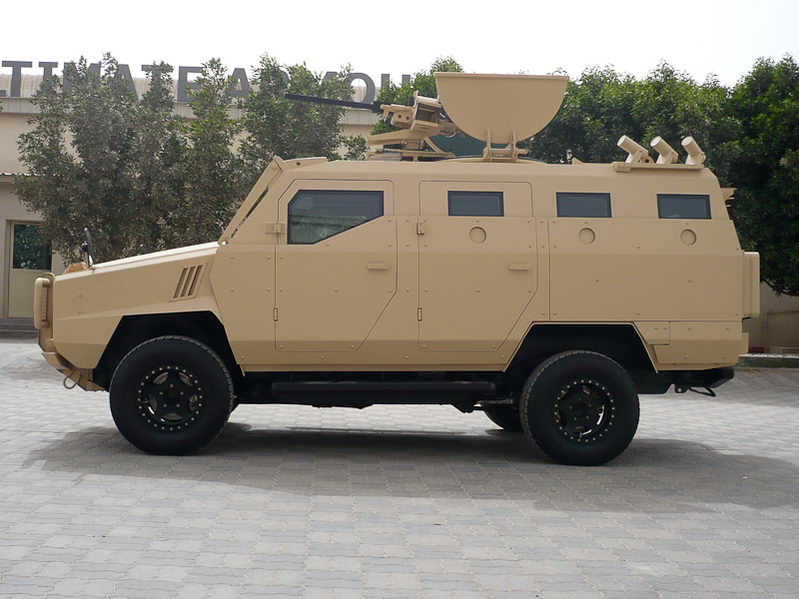

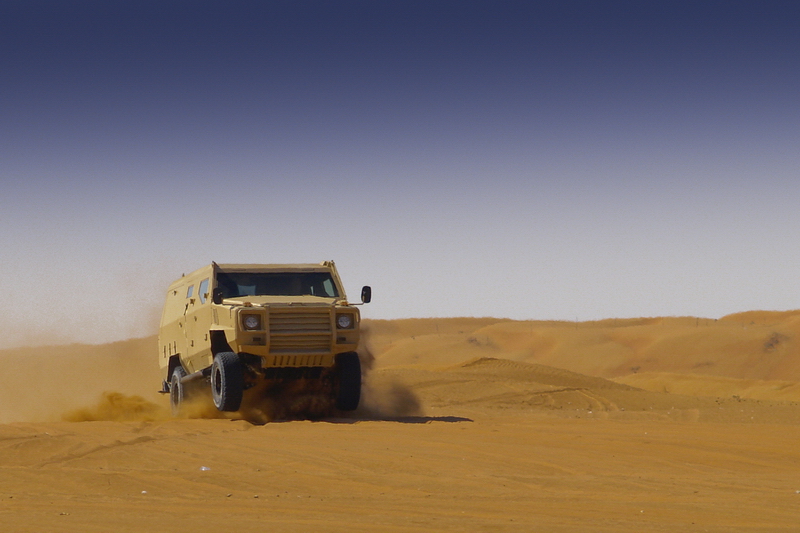

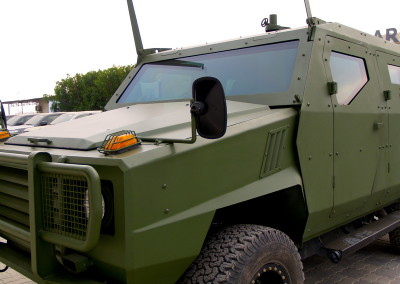

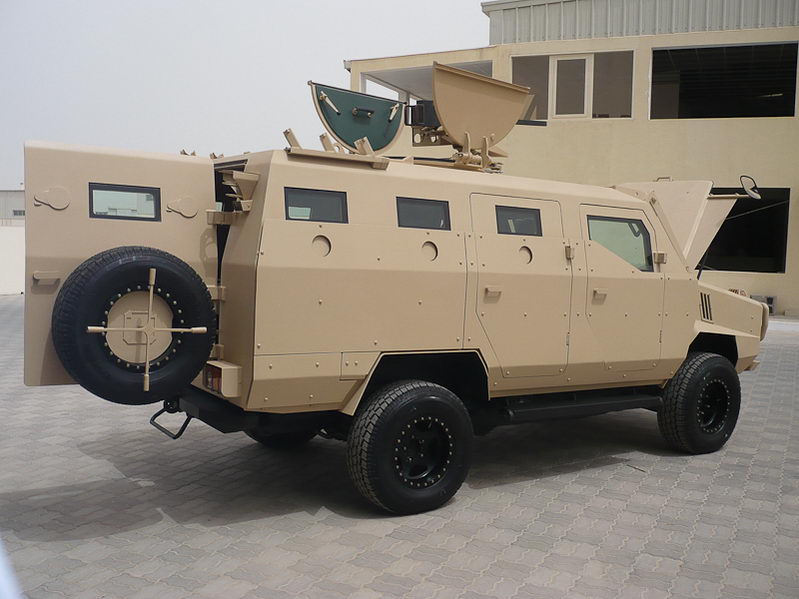

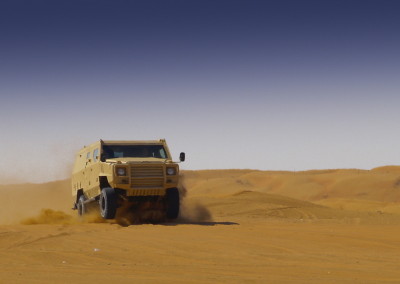

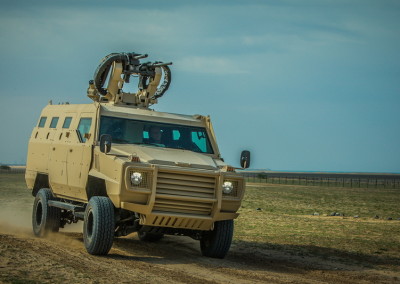

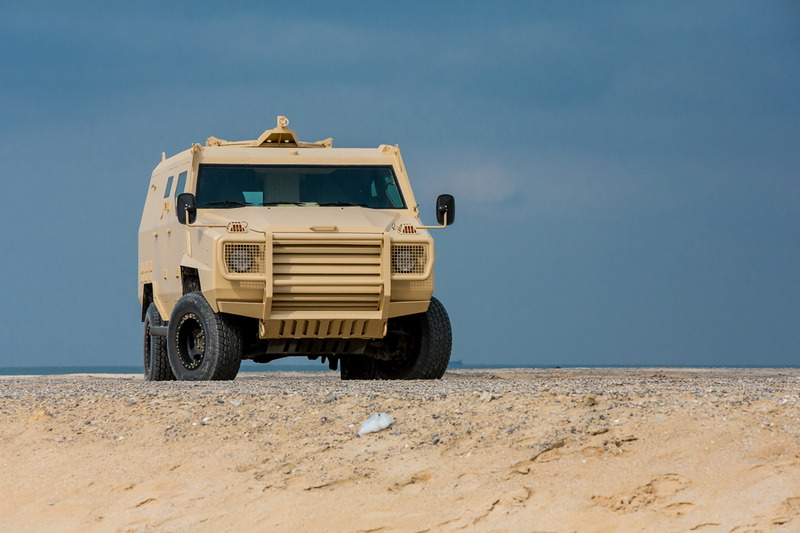

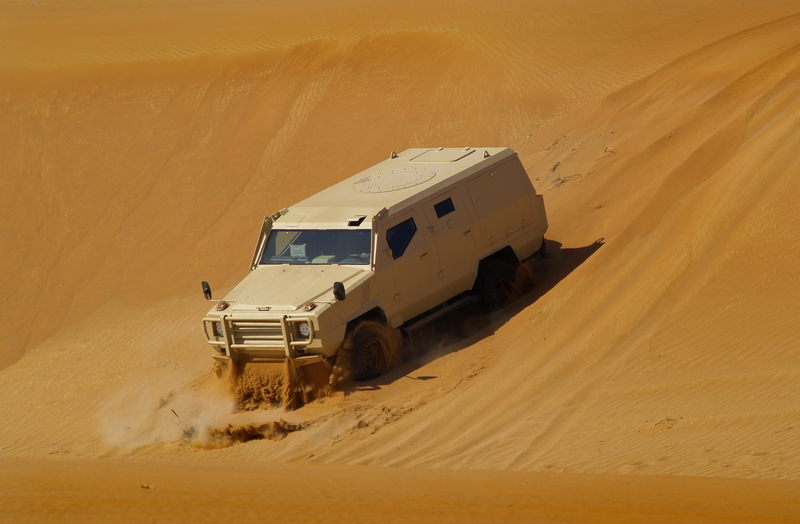

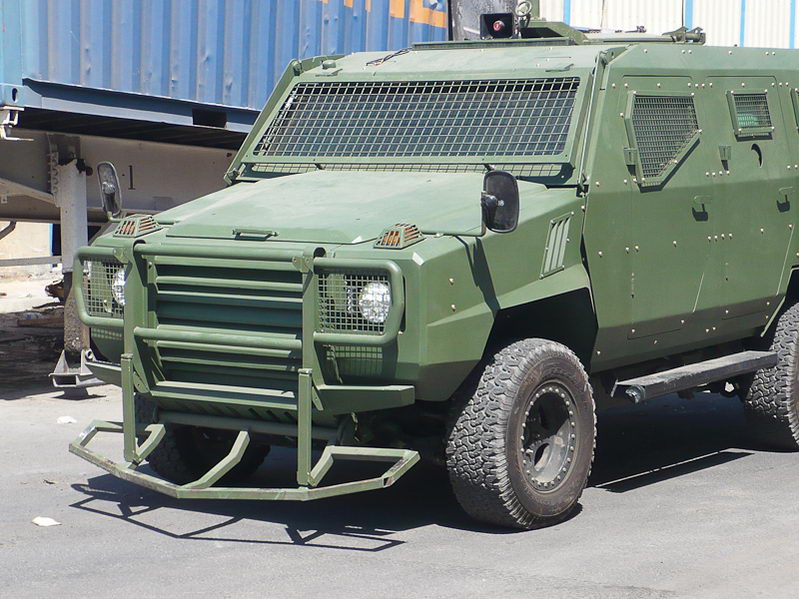

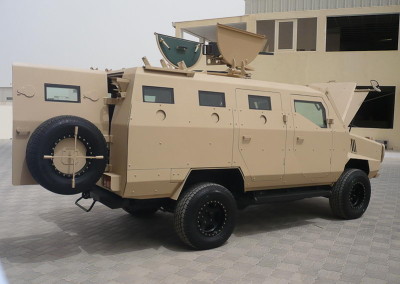

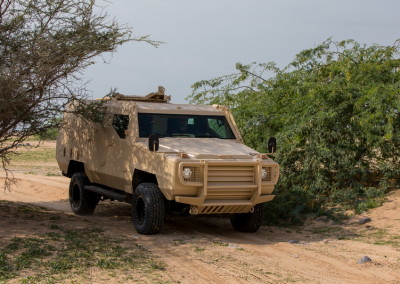

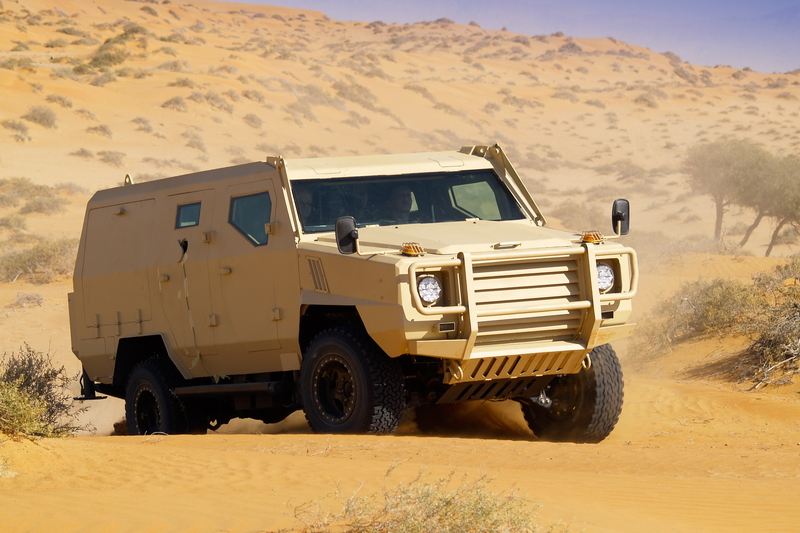

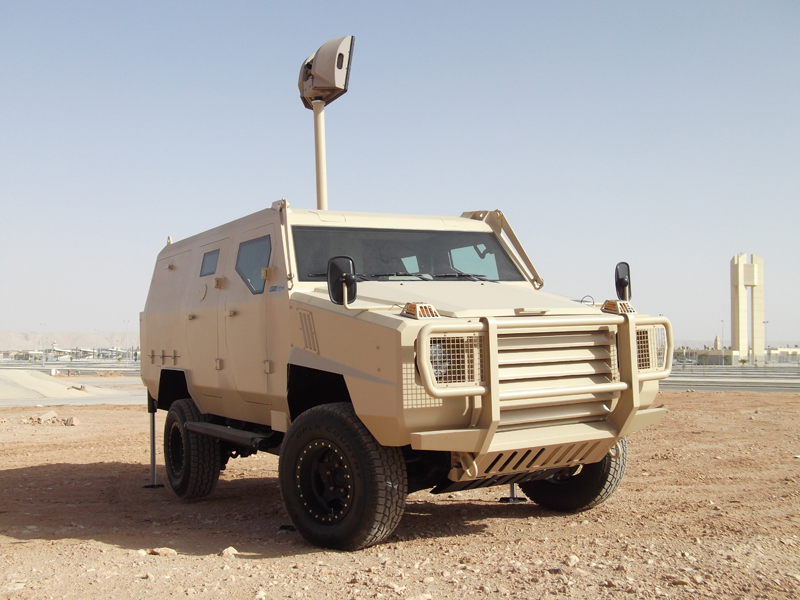

MMV

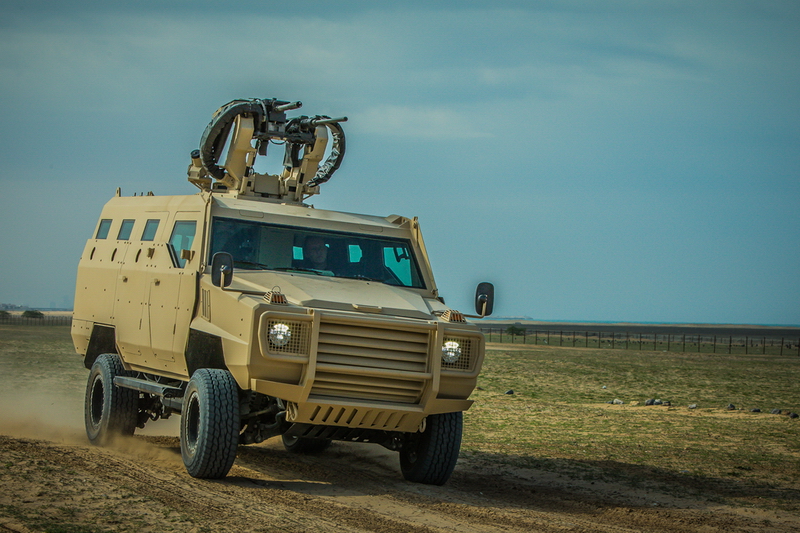

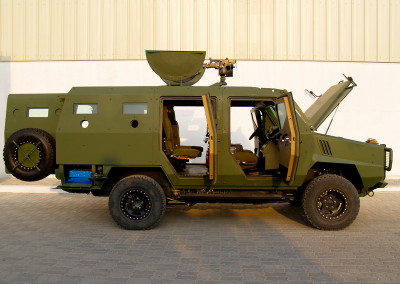

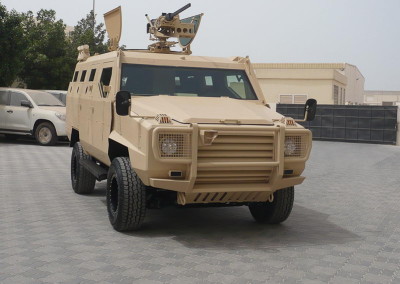

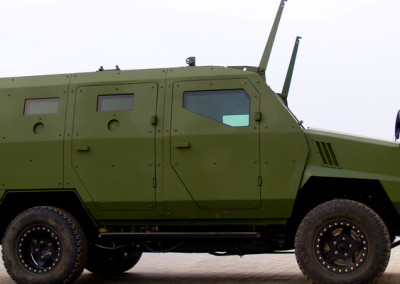

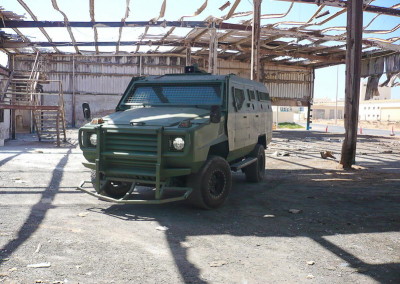

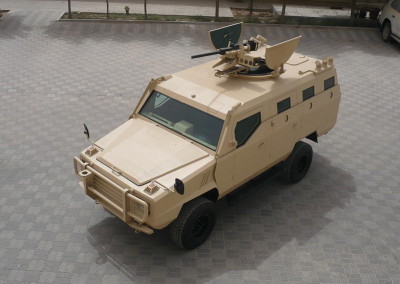

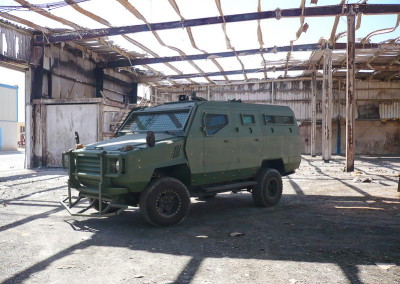

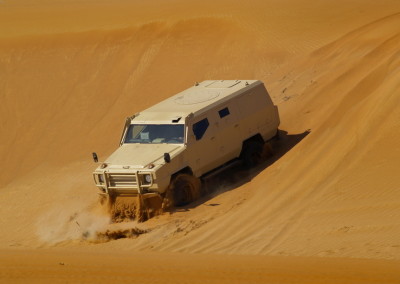

Multi Mission Vehicle 4 x 4

Download datasheet

ENGINE and POWER TRAIN

V8 direct injection diesel engine with turbocharger and intercooler with high performance water cooling system for desert conditions

Rating: up to  300 HP
Torque: up to 650 Nm

6-speed automatic transmission
Transfer case with permanent 4
Wheel Drive; High-Low Range and
Auto-Differential Lock
100% locking Differentials in
front axle and rear axle

BODY

Ballistic protection up to STANAG 4569
Level II or B7 on passenger, cargo compartment and on engine bonnet, radiator grille STANAG 4569 Level I
Mine blast protection up to STANAG 4569 Level 2
3 door and 5 door configurations
Armored Personnel Carrier seating capacity up to 12 personnel
Reconnaissance

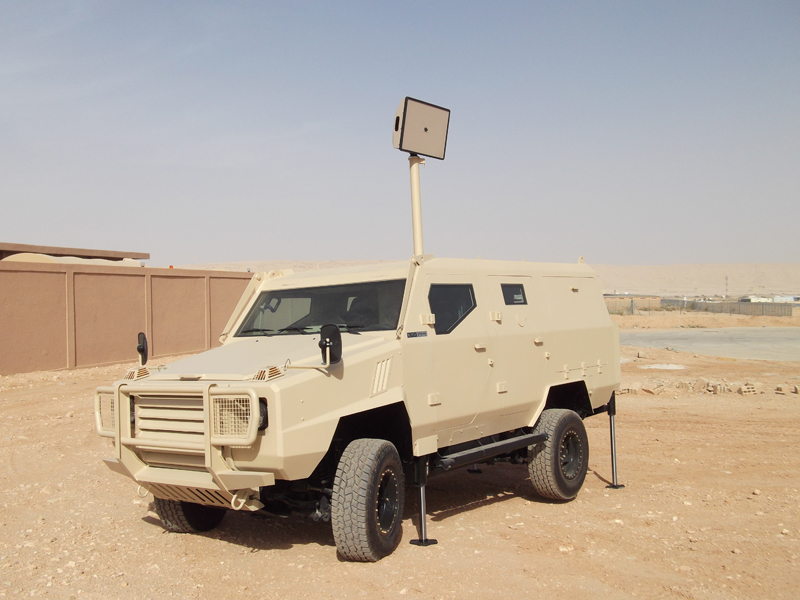

Observation / Radar
Ambulance
Police & Internal security
Riot control

WEIGHT and CAPACITIES

GVW: 6500 kg
WHB: 2850 mm
Max. Front axle load: 2500 kg
Max. Rear axle load: 4400 kg
Fuel tank capacity: 140 l

TIRES

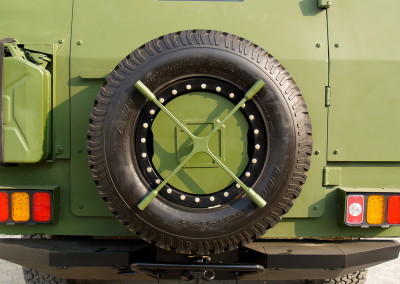

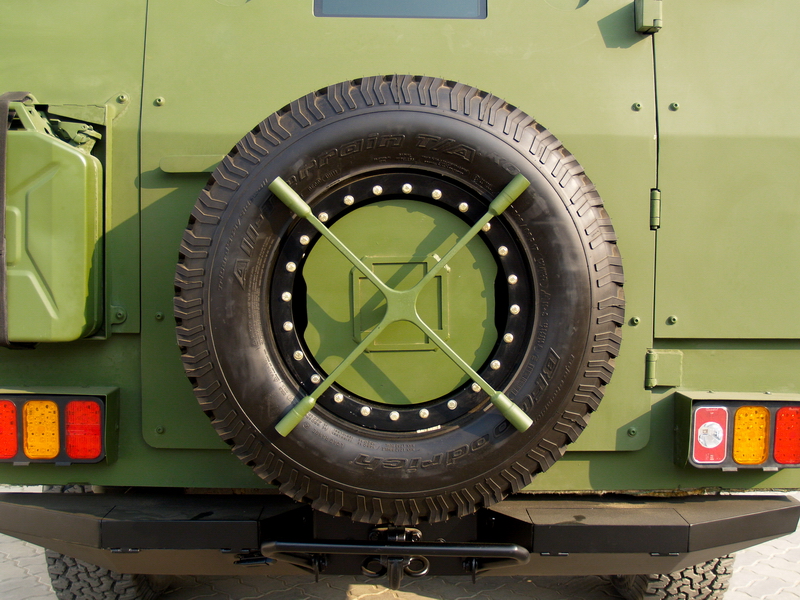

On and Off road tires with run flat and Bead lock system

PERFORMANCE

Speed: up to 140 km/h
Grade: up to 80 %
Side: slope up to 45 %

BRAKE SYSTEM

Heavy Duty disc brakes Front + Rear with Anti-lock Brake System

ELECTRIC SYSTEM

12 V /24 V System, waterproof
EMI & RFI protected
Convoy lights
Battery master switch

SUSPENSION and STEERING

Heavy Duty Coil spring suspension,
hydraulic shock absorbers front and rear with anti-roll bar
Hydraulic Power Steering

Get in touch with STI Multi Mission Vehicle

Contact us

SPECIAL FEATURES and OPTIONS

  • Heating and heavy duty Split Air-Conditioning System
  • Lashing-, Towing- and Lifting Attachments
  • Air -, Sea- and Rail transportable
  • Fire Suppression system

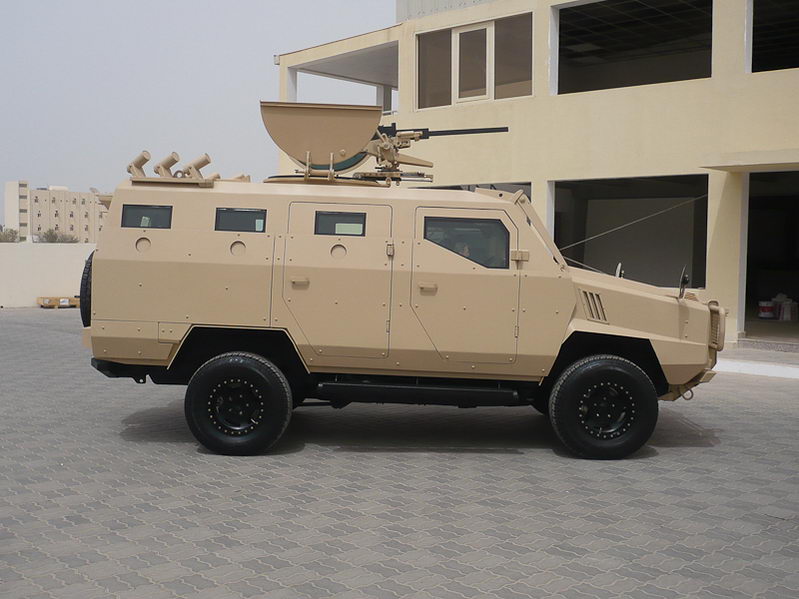

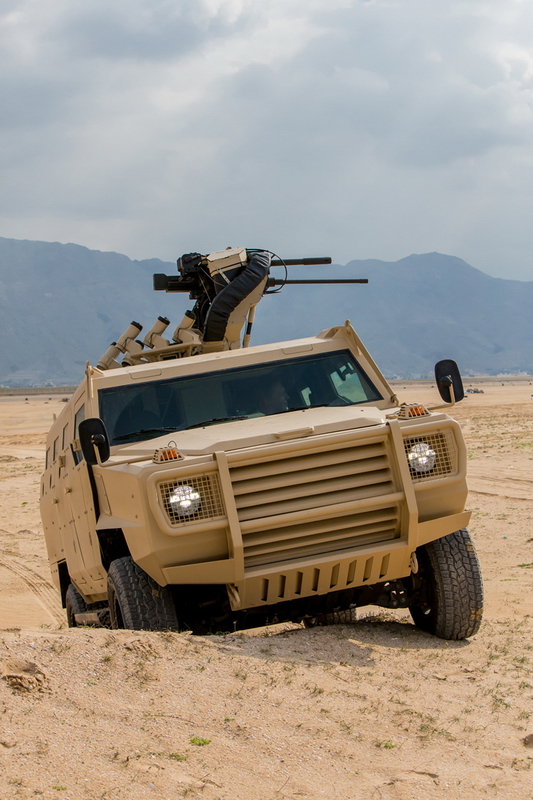

  • Weapon stations in different configurations
  • Ammunition storage
  • Rifle holder
  • Grenade launcher system
  • FFR (Fit for Radio) kit
  • Public Announcement system
  • STIS-E drive(STEYR Tire Inflation System)
  • Searchlights
  • Barricade remover
  • Wire cutter

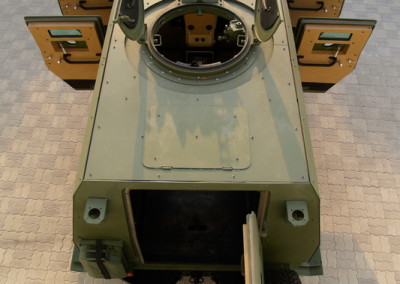

  • Roof hatch
  • Shooting ports
  • Long Range Acoustic Device
  • Pioneer tool kit
  • Air filtration system with NBC filter
  • Inverter to transform external power supply from 220V AC to 24V  or 12 V DC
  • Light bar and front/rear strobe lights
  • Camera system with recording and transmitting capability
  • Equipment to meet customer requirements and special mission applications
