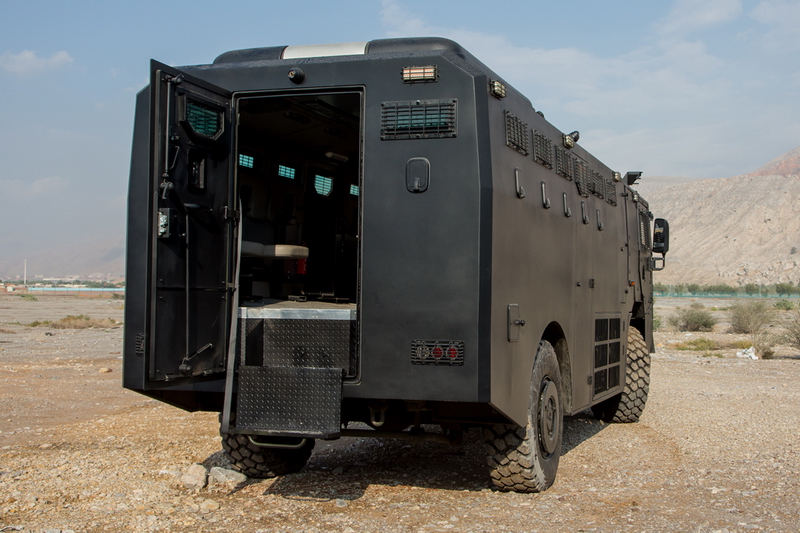

SSV

Armored Special Security Vehicle for Homeland Security

Download datasheet

VEHICLE ENGINE Euro 3 - Euro 6

6 cylinder in line Diesel Engine, with Variable Geometry Turbocharger and Intercooler.
Water cooled, capable to operate in high ambient temperatures and desert environment

Displacement 12.880 cm³
Engine Power up to: 480 HP
Torque up to: 2200 Nm
Protected Fuel Tank up to: 300 l

DIMENSIONS & WEIGHT

Length 8500 mm
Width 2490 mm
Vehicle Height (roof line) 2900 mm
Wheelbase 4200 mm
Gross Vehicle Weight 19.000 kg
Payload up to 5.000 kg

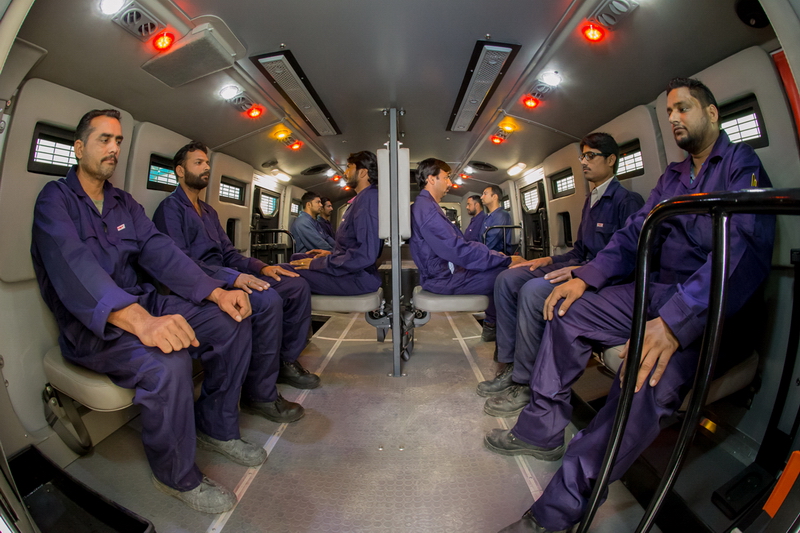

Sitting Capacity up to 16 Persons

PERFORMANCE

Max. Speed up to 110 km/h
Acceleration 0 – 60 km/h 18.9 sec
Gradeability up to 60 %
Side Slope up to 35 %
Turning Radius 8,0 m

DRIVETRAIN

Gearbox:
Manual or Automated shift transmission

Transfer Case:
2-speed transfer case with permanent all-wheel drive with 100% differential lock system

Axles:
Heavy duty double reduction front and rear axles with 100% differential lock system

Steering:
Left or Right hand power steering

Suspension:
Heavy Duty Leaf Spring Suspension with Hydraulic Shock Absorbers and Stabilizer Bars

INTERNAL SECURITY SSV BODY CONFIGURATIONS

Armored Personnel Carrier
Armored Command & Control Vehicle

Kinetic Energy Protection upt to CEN B7 / STANAG 4569
Level 2

Mine Blast Protection upt to STANAG 4569
Level 2b

IED Protection upt to 20 kg TNT

SPECIAL FEATURES

Camera & Recording System for monitoring
Wire Cutter
Zoom Camera with telescope mast for surveillance
GPS & Tracking Function
Strobe Lights, Siren & Public Announcement System
Fitted For Radio 12V 24V
Auxiliary Power Pack & Generator Set
Gun Ports
Tire Inflation System for highest Mobility
Run Flat System
Independent A/C System – Tire Shield System
Various Weapon Stations: Internal Security Turret, Remote Control Weapon Stations, Roof Rings
Barricade Remover
Fire Suppression System
