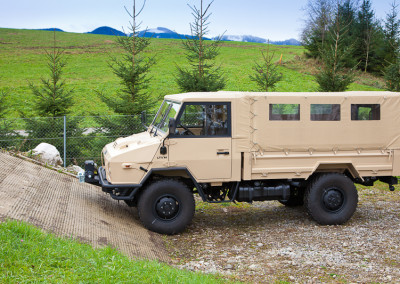

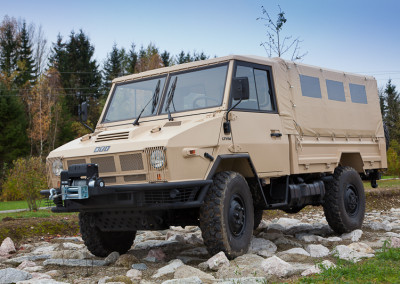

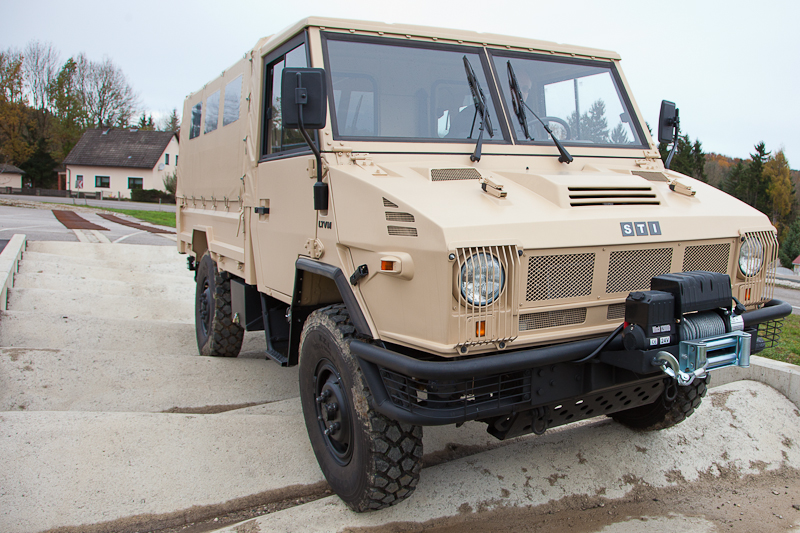

LTV M

Light Tactical Vehicle Military 4×4

Download datasheet

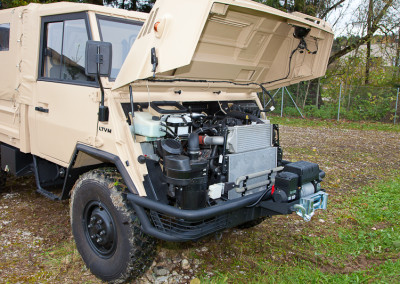

ENGINE and POWER TRAIN

direct injection diesel engine with turbocharger and intercooler

166 HP at 3600 rpm
385 Nm at 1500 rpm

5-speed forward –1 reverse
permanent 4WD with High-Low Range
3 x 100 % differential locks in transfer case, front- and rear axle

SUSPENSION

Front axle:
independent suspension with torsion bar and hydraulic shock absorber

Rear axle:
leaf springs with hydraulic shock
absorbers and anti roll bar

WEIGHT, DIMENSIONS and CAPACITIES

GVW: 5300 kg
Payload: up to 2000 kg
Axle load F: 2150 kg
Axle load R: 3200 kg
Wheelbase: 2800 mm / 3200 mm
Width: 2050 mm
Height (cab roof): 2230 mm
Fuel tank: 80 l
Seating capacity:
troop & cargo up to 15

ELECTRIC SYSTEM

24 V System, waterproof, EMI & RFI protected
Battery main switch
NATO slave start socket

PERFORMANCE

Speed: up to 105 km/h
Range: up to 600 km

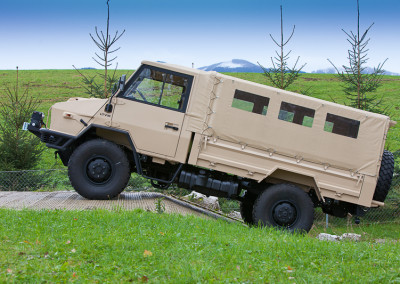

Gradeability: up to 80 %
Side slope: up to 45 %
Fording depth: 700 mm

BRAKE SYSTEM

Servo assisted dual-circuit hydraulic brake system.
Self ventilating disc brakes front and heavy duty drum brakes rear with parking brake.
Anti Lock Brake System with switch off function.

STEERING

Power Steering  LHD

TIRES

On and off road tires 255/100 R 16

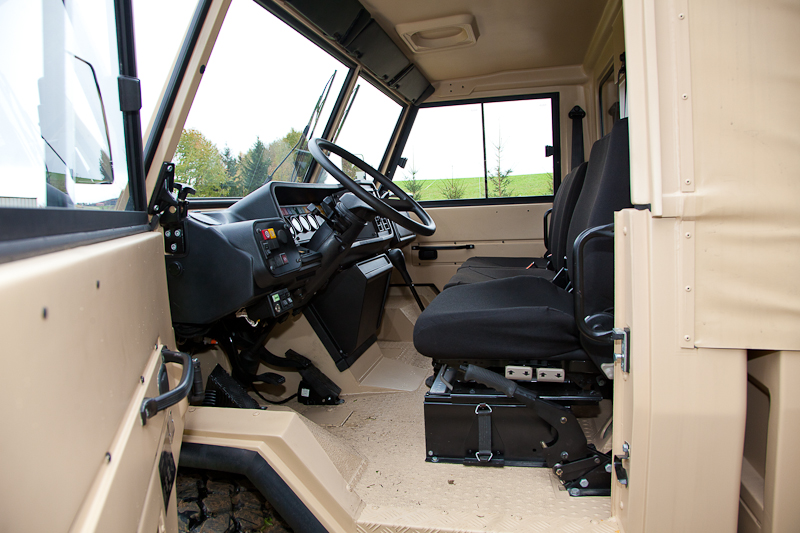

DRIVERS CABIN

with heating and ventilation system

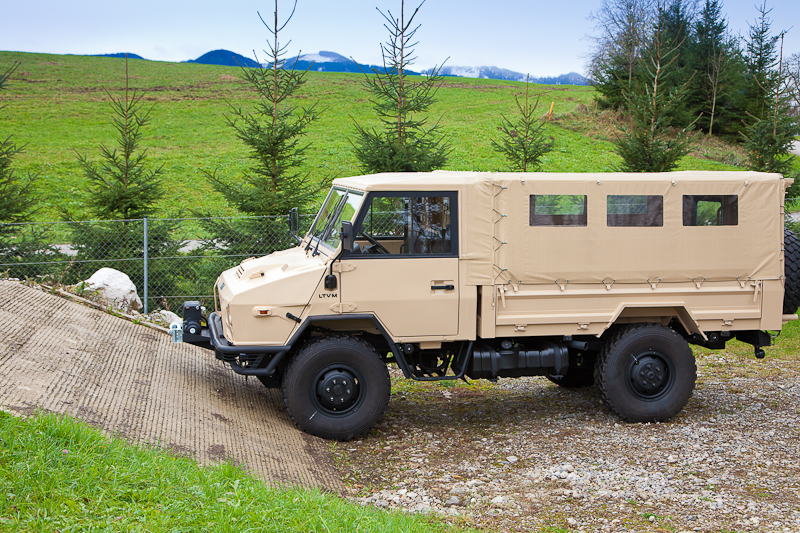

Single Cab with hard top or soft top

Get in touch with STI Light Tactical Vehicle

Contact us

SPECIAL FEATURES and OPTIONS

  • Fitted for Radio (FFR)
  • Semi-Automatic Tire Inflation System
  • GPS Installation

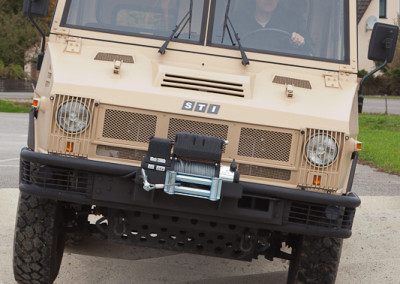

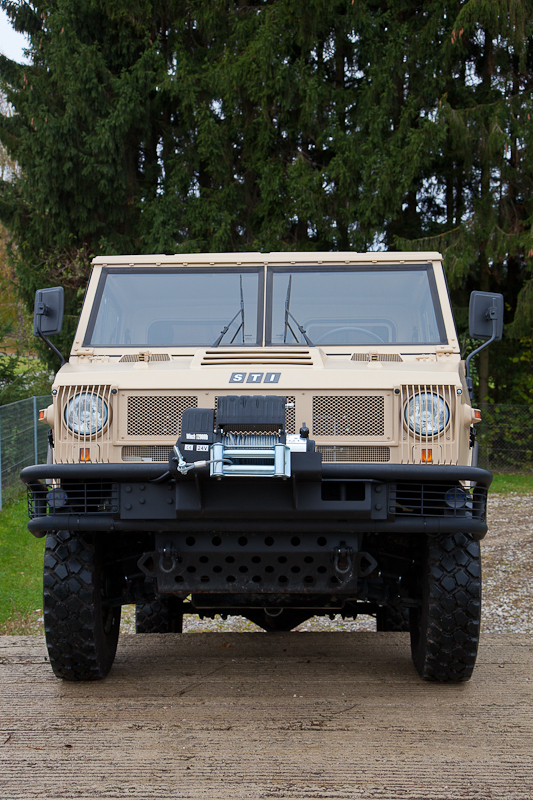

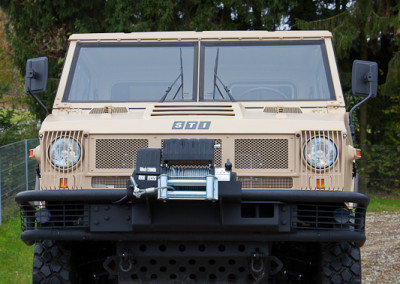

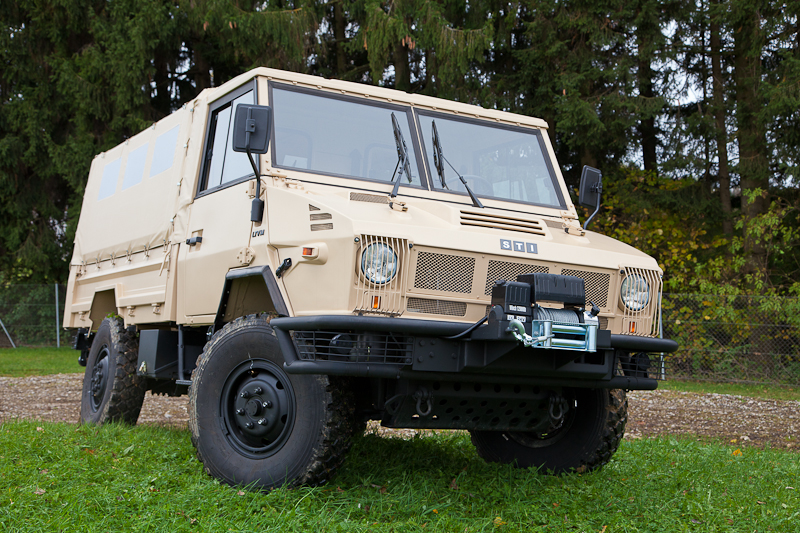

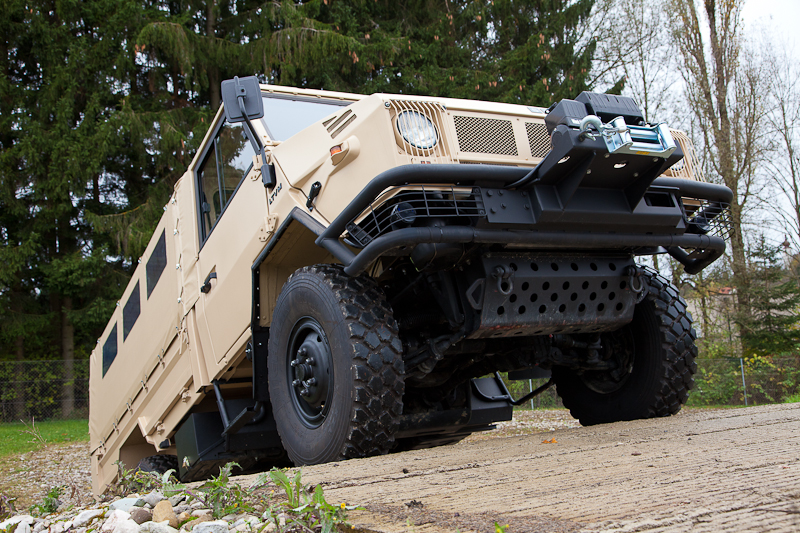

  • Recovery Winch
  • Pioneer Tool Kit
  • Run-Flat  for wheels
  • Common logistic system

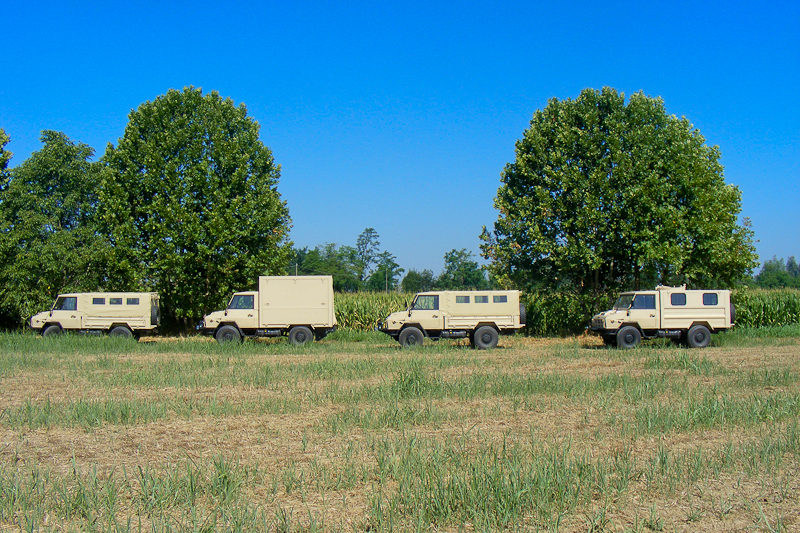

  • Body variants according to customer  mission requirement
  • Land-, Air-, Sea- and Rail Transportable

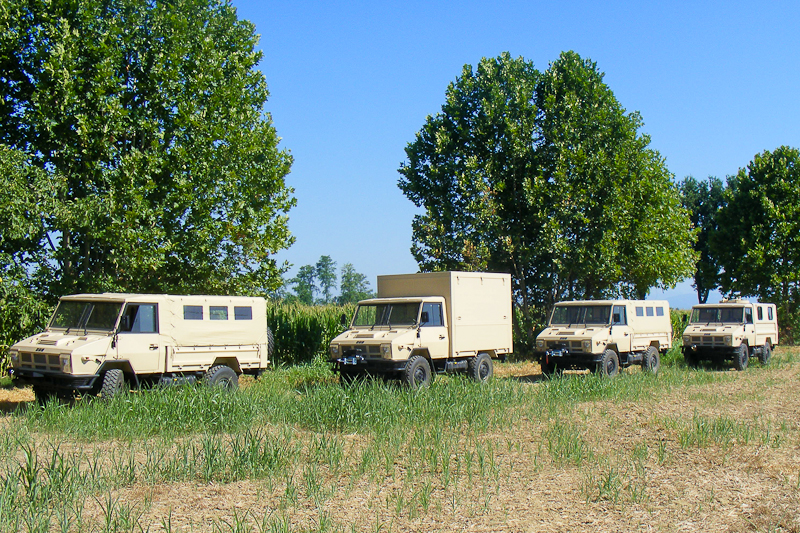

  • Mission oriented body variants

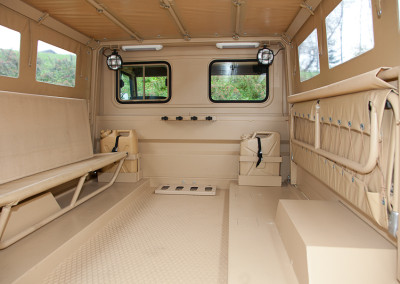

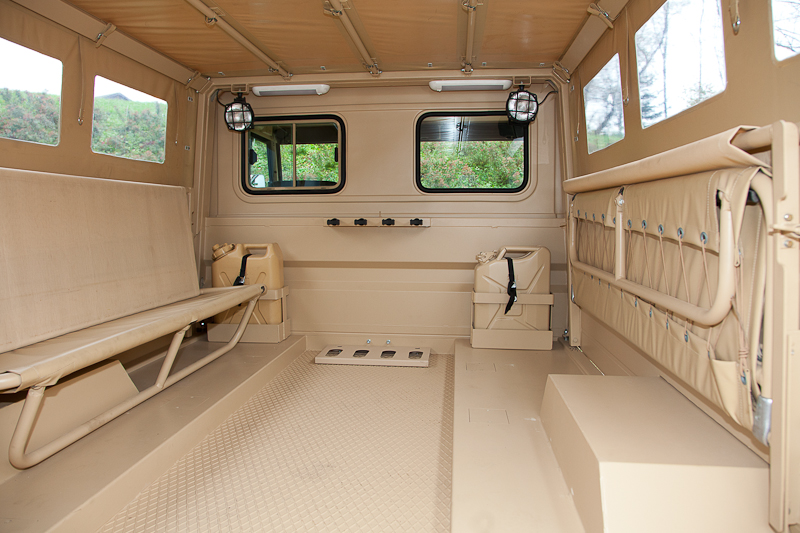

    • Troop Transporter Platform
    • General Service Body
    • Command Van

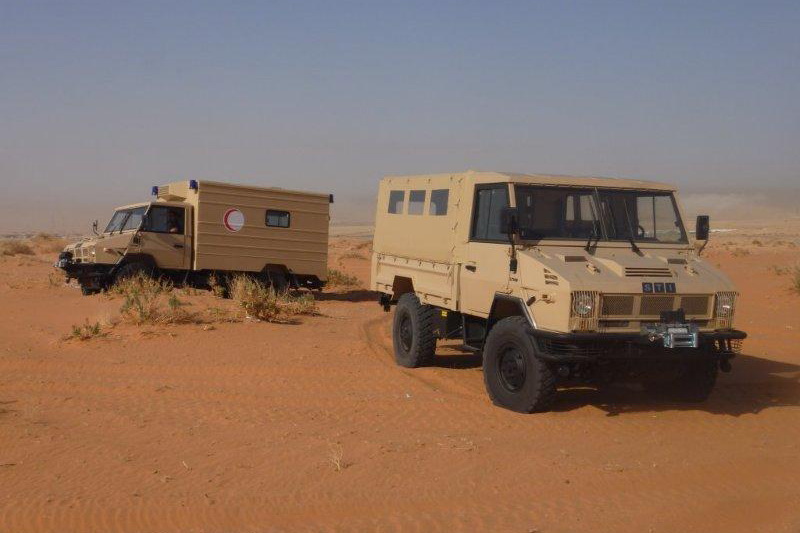

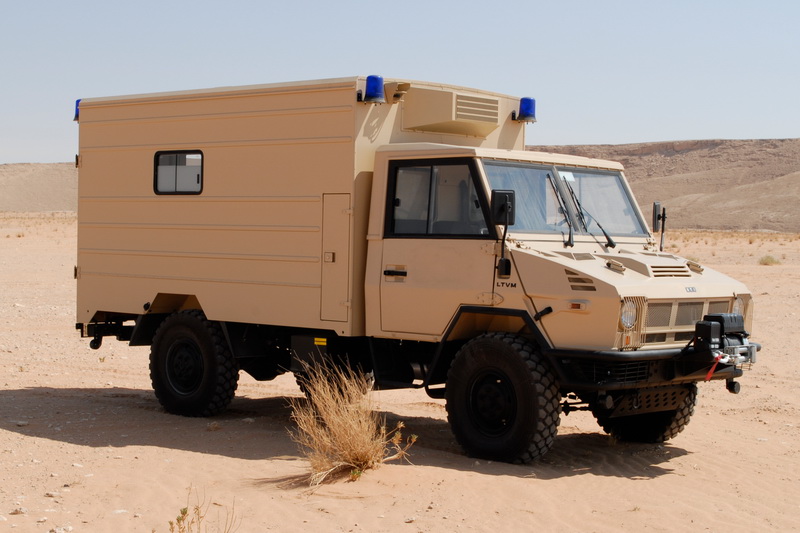

    • Ambulance Shelter
    • Signal Communication Shelter
    • Van Body with Hydraulic Tailgate
