AWC

Armored Water Cannon for Homeland Security Missions

Download datasheet

DIMENSIONS & WEIGHT 4x4/6x6

Length 7500 mm / 8900 mm
Width 2550 mm / 2550 mm
Vehicle Height (roof line) 2900 mm / 2900 mm
Wheelbase 3800 mm / 3820 + 1390 mm
Gross Vehicle Weight 23.000 kg / 36.000 kg
Water Capacity 7.000 l / 14.000 l
Foam Capacity 200 l / 400 l
Two Additive Tanks each 100 l / 100 l

VEHICLE ENGINE Euro 3 - Euro 6

6 cylinder in line Diesel Engine, with Variable Geometry Turbocharger and Intercooler.Water cooled, capable to operate in high ambient temperatures and desert environment

Displacement 12.880 cm³
max. engine Power: up to 480 HP
max. Torque: up to 2200 Nm
Protected Fuel Tank : 300 l

SPECIAL FEATURES

Camera & Recording System
Wire Cutter
Strobe Lights, Siren & Public Announcement System
Run Flat & Tire Shield System
24 V EMI protected and water proof
Fitted For Radio

WATER CANNON EQUIPMENT - Flow / Range up to

Independent Engine-Pump Unit 280 HP 4000 LPM / –
2 roof monitors each 1800 LPM / 65 m

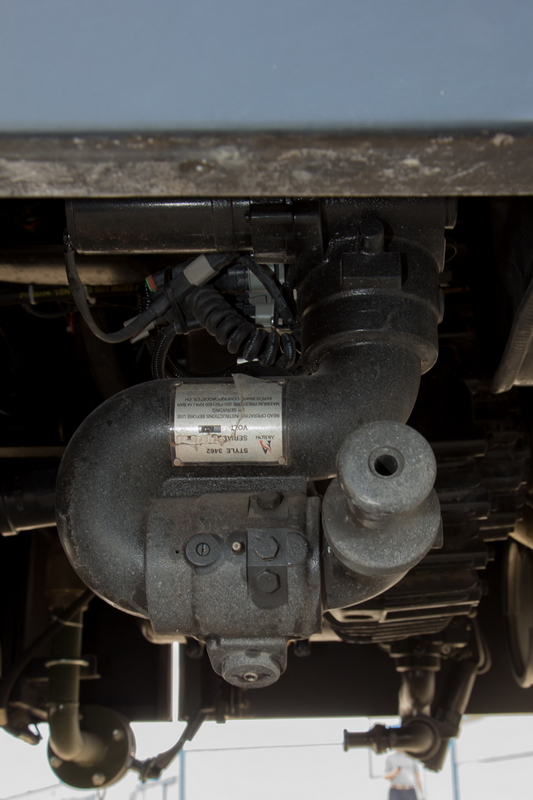

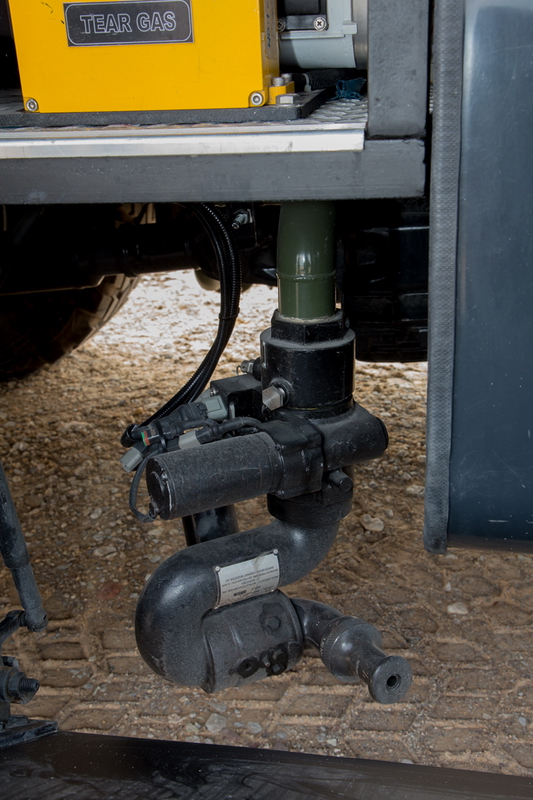

Side & Rear Protection Nozzles each 300 LPM / 25 m

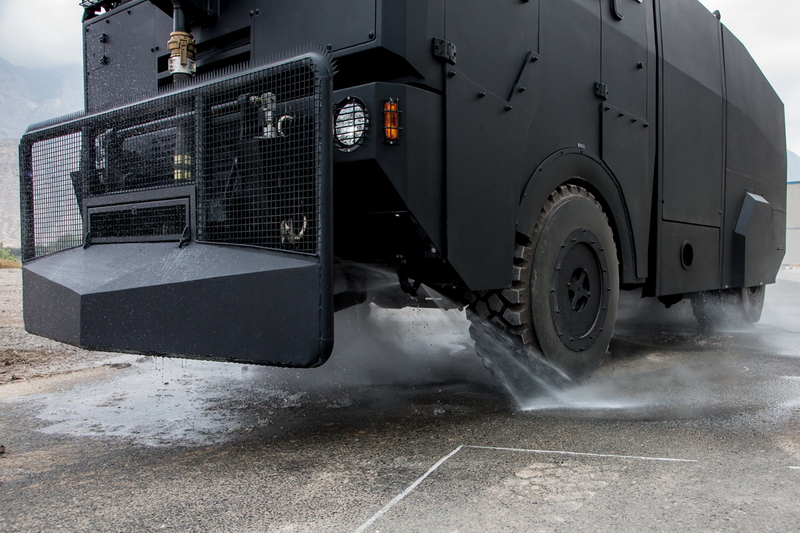

Bumper Monitor 1325 LPM / 50 m

Kinetic Energy Protection STANAG 4569
Level 2

Mine Blast Protection STANAG 4569
Level 2a

IED Protection 20 kg TNT

DRIVETRAIN

Gearbox:
Manual or Automated shift transmission

Transfer Case:
2-speed transfer case with permanent allwheel drive with 100% differential lock system

Axles:
Heavy duty double reduction front and rear axles with 100% differential lock system

Steering:
Left or Right hand power steering

Suspension:
Heavy Duty Leaf Spring Suspension with Hydraulic Shock Absorbers and Stabilizer Bars
